Lizark Exploded View Plugin for SketchUp
Turn SketchUp models into exploded-view animations, focal-point camera moves, assembly callouts, batch exports and parts manuals.
Free download (Windows & Mac) · Pro via Dodo Payments · SketchUp 2021+
Features
Everything an exploded view needs

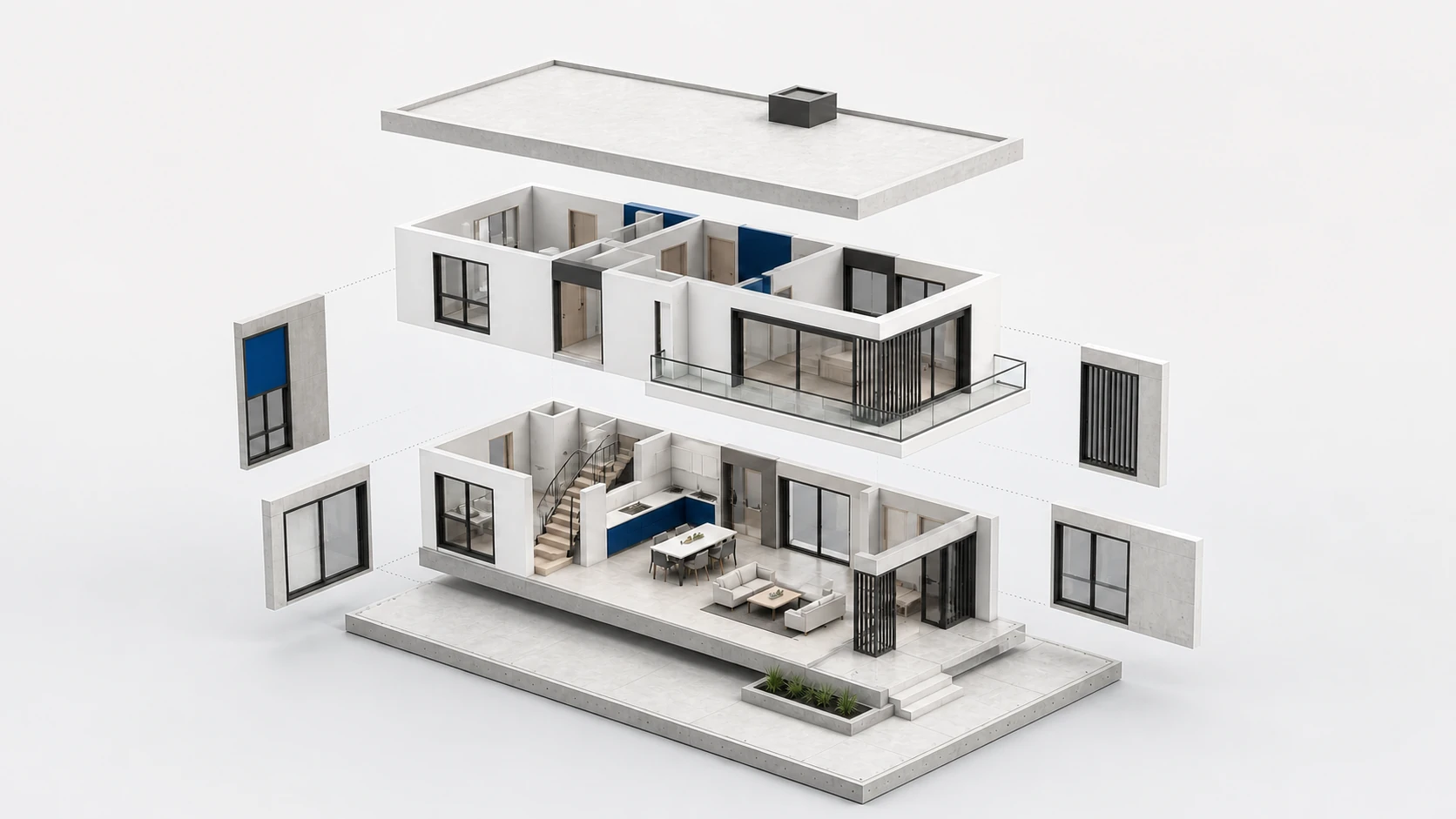

Exploded & Assembly Animations
Separate groups and component instances along radial, axis, slide, floor, spiral and fan paths, then animate them back together seamlessly.
Camera Keyframe Paths
Orbit, travel and focus camera moves with editable focal points, aim targets and keyframe interpolation for dramatic cinematic shots.
Named Assembly Storyboards
Build a storyboard of named stages (Foundation, Structure, Enclosure, Finishes) with timed holds and step camera bookmarks.
Dynamic Numbered Callouts
Automated numbered balloon callouts anchored to each part, with leader lines that dynamically track moving objects in preview and exports.
Batch Video & GPU Acceleration
Queue 4K 60FPS renders in MP4, WebP, WebM and GIF with GPU hardware acceleration (NVENC, QuickSync, Apple VideoToolbox).
Native SketchUp Scene Generation
Write storyboard steps directly as SketchUp animation scenes in your active model for native viewport transitions and presentation tabs.
Presets & Motion Overrides
Save animation presets and customize easing curves, stagger order, auto-height distribution, and per-part movement overrides.
Parts Manual & BOM Export
Export the selected components as a clean CSV bill of materials or an interactive HTML parts manual for fabrication handoff.
100% Non-Destructive Workflow
Safe sandbox execution with one-click rollback ensures your original SketchUp geometry and camera baselines are never altered.
Dynamic BOM Callouts & Real-Time Part Tracking
Watch leader lines and numbered callouts dynamically track components as they separate along 7 procedural explode algorithms. Export high-fidelity 4K videos or interactive HTML manuals in one click.
Workflow
From model to animation in four steps
Select parts
Choose the groups and component instances you want to animate.
Set the explode
Pick an effect, distance, stagger and camera path.
Preview
Scrub the timeline and fine-tune timing in place.
Export
Render a video or a full assembly storyboard and share it.
Plans & pricing
Choose the plan that fits your workflow
Start free with the complete exploded-view editor, or own Pro forever with a single lifetime purchase.
Free
₹0The full exploded-view editor for free — no checkout or license key needed:
- 7 explode effects — radial, axis, floor, fall, angle, slide & fan
- Stagger, easing & per-part timing
- Camera moves — orbit, target, fly-through & advanced motions
- Save & re-use your own presets
- Export MP4, WebM, WebP, GIF or PNG sequence
- 10 previews + 10 exports per month
Reach the monthly limit and upgrade to Pro to keep going — your projects are never locked or watermarked.
Download Free (.zip)Windows & macOS · SketchUp 2021–2026
Pro Lifetime
One-time purchase · Lifetime accessNo recurring subscription or monthly fees.
Unlimited exports and previews, batch render queue, storyboard steps, callouts and parts manuals with a permanent device-bound license.
- Unlimited exports & previews
- Batch render queue (MP4/WebP/WebM/PNG)
- Assembly storyboard steps & numbered callouts
- Write storyboard steps as SketchUp scenes
- Camera keyframes + presets
- Parts manual & BOM export (CSV/HTML)
- Illustrated assembly manual with printable PDF workflow
- Custom brand logo overlay on video exports
One-time purchase · Secure checkout via Dodo Payments.
Download
Download the plugin. Start in Free mode.
Get the free Lizark Exploded View extension for Windows and macOS. Complete the quick social unlock and accept the license terms to download the installer immediately.
Read Full EULA & Legal Notice (5 Clauses) Expand
1. Grant of Single-Seat License:
Lizatek grants you a personal, revocable, non-exclusive, non-transferable, single-seat license to install and run Lizark Exploded View solely as an extension within authorized versions of Trimble SketchUp. The software is licensed, not sold.
2. Strict Prohibition on Reverse Engineering & Decompilation:
You shall not, directly or indirectly: (a) decompile, disassemble, decrypt, unpack, or reverse engineer any binary, native library, encrypted bytecode, or Ruby script; (b) inject hooks, trace execution, dump runtime memory, or extract proprietary algorithms; or (c) modify, patch, or create derivative works from this software.
3. Absolute Ban on Redistribution, Reselling & Mirroring:
This software and its installer (.zip) are strictly non-redistributable. You are strictly forbidden from uploading, sharing, mirroring, hosting, sublicensing, reselling, or distributing the package via websites, forums, torrents, cloud storage, Discord, Telegram, or any digital channel.
4. Protection of Security & Anti-Piracy Controls:
Any attempt to tamper with, bypass, neutralize, spoof, or modify license verification tokens, hardware ID bindings, cryptographic signatures, or API communication constitutes a material breach and grounds for immediate permanent device/license blacklisting.
5. Civil Statutory Damages & Criminal Enforcement:
Willful infringement or unauthorized distribution will be aggressively prosecuted to the fullest extent of the law, including statutory copyright damages (up to $150,000 per violation under the DMCA, Indian Copyright Act 1957, and international IP treaties), injunctive relief, recovery of all legal fees, and criminal prosecution.
Download statistics unavailable
Free download — no checkout or license key required. Compare plans.
Stay in the loop
Don't miss the next update
Get notified when new features drop or a new Lizark plugin launches. No spam — only what matters.
No spam. Unsubscribe any time.
Plan Feature Comparison
Clear, transparent pricing: choose the Free Starter tier or own Pro forever with a one-time purchase (no subscription).
| Feature | Free Starter | Pro Lifetime |
|---|---|---|
| Pricing | ₹0 / $0 Free | $29.99 / ₹2,999 |
| Billing Model | Free forever | One-time purchase · No renewals |
| Monthly Video Exports | 10 exports / mo | Unlimited |
| Monthly Previews | 10 previews / mo | Unlimited |
| 7 Explode Effects (Radial, Axis, Floor, Fan, etc.) | ||
| Dynamic BOM Leader Callouts | ||
| 4K 60FPS Video Export (MP4, WebM, WebP, GIF) | ||
| Batch Video Render Queue | — | |
| Write Native SketchUp Scenes | — | |
| Illustrated Manual & Printable PDF | — | |
| Custom Brand Logo Watermark | — | |
| OS Support (Windows & macOS) | Windows & Mac | Windows & Mac |
Built for architects, builders, designers and training teams. Turn any SketchUp model into a clear, presentation-ready assembly animation.
PNG sequences export directly. MP4, WebM, animated WebP and GIF use the included GPU-accelerated FFmpeg encoder on Windows and Mac—no separate installation required.
Frequently asked questions
Lizark Exploded View FAQ
What is Lizark Exploded View?
Lizark Exploded View is a standalone SketchUp plugin for creating exploded-view and assembly animations directly from groups and component instances. It combines part movement, camera paths, live BOM callouts, storyboard steps, native scene generation and multi-format export tools in one unified workflow.
Which operating systems and SketchUp versions does it support?
Lizark Exploded View supports SketchUp 2021 through SketchUp 2026 on both Windows (10/11) and macOS (Intel & Apple Silicon M1/M2/M3/M4). Separate dedicated installation packages are provided for both platforms.
Which animation and document formats can it export?
The plugin exports PNG sequences directly and includes bundled FFmpeg with GPU acceleration for MP4, WebM, animated WebP and GIF exports on Windows and Mac. It also generates CSV bills of materials, HTML parts manuals, and interactive 3D assembly manuals ready for printing to PDF.
How does the Free Starter Tier work?
The Free Starter Tier is 100% free forever and includes 10 previews and 10 video/manual exports every month with all 7 explosion effects, camera tools, and live preview unlocked. No credit card or license key required.
How much is Lizark Exploded View Pro?
Pro is a 100% one-time purchase: $29.99, or ₹2,999 in India. There are NO recurring subscriptions or monthly fees. One Pro license unlocks unlimited exports and batch rendering on one computer with lifetime minor updates.
Which payment providers issue the license keys?
The free download unlocks instantly via social follow — no checkout or license key required. Pro is available through Dodo Payments (₹2,999 INR in India, $29.99 USD internationally) with instant license key delivery to your email.
Need help with Lizark Exploded View?
Send us a Lizark Exploded View support request and we will get back to you within one business day.
