LizArk plans
LizArk by Lizatek.com Main Plugin

2D Plan to 3D SketchUp Plugin
& 1-Click Floor Plan Conversion
Built for Architects.

Convert prepared DWG, DXF, PDF and image floor plans into editable SketchUp architecture with Generate 3D, then stack organized floors into an elevation-ready building with To Elevation.

One click
Generate 3D
Plan formats
DWG · DXF · PDF
Target accuracy
99%
Explore Features Buy LizArk

Download statistics unavailable

Read the DWG-to-3D SketchUp workflow
LizArk - 1-Click SketchUp 3D Automation
WebUI Canvas

Draw, trace, and export with Web Draw Wall

Web Draw Wall is a sophisticated CAD-style canvas right inside SketchUp. Trace PDF, JPG, or PNG floor plans, draw wall centerlines, place openings and structural elements, then generate real 3D walls with one click.

  • Full 2D web canvas with CAD toolbar, layers, and simple / Pro modes.
  • Trace over raster or vector PDF underlays and clean up traced lines before generation.
  • Generate walls, openings, stairs, columns, beams, footings, roads, and floor plates.
  • Export your draft to DXF, PDF, PNG, JPG, SVG, or JSON for further drawing improvements.
Read Web Draw Wall tutorial

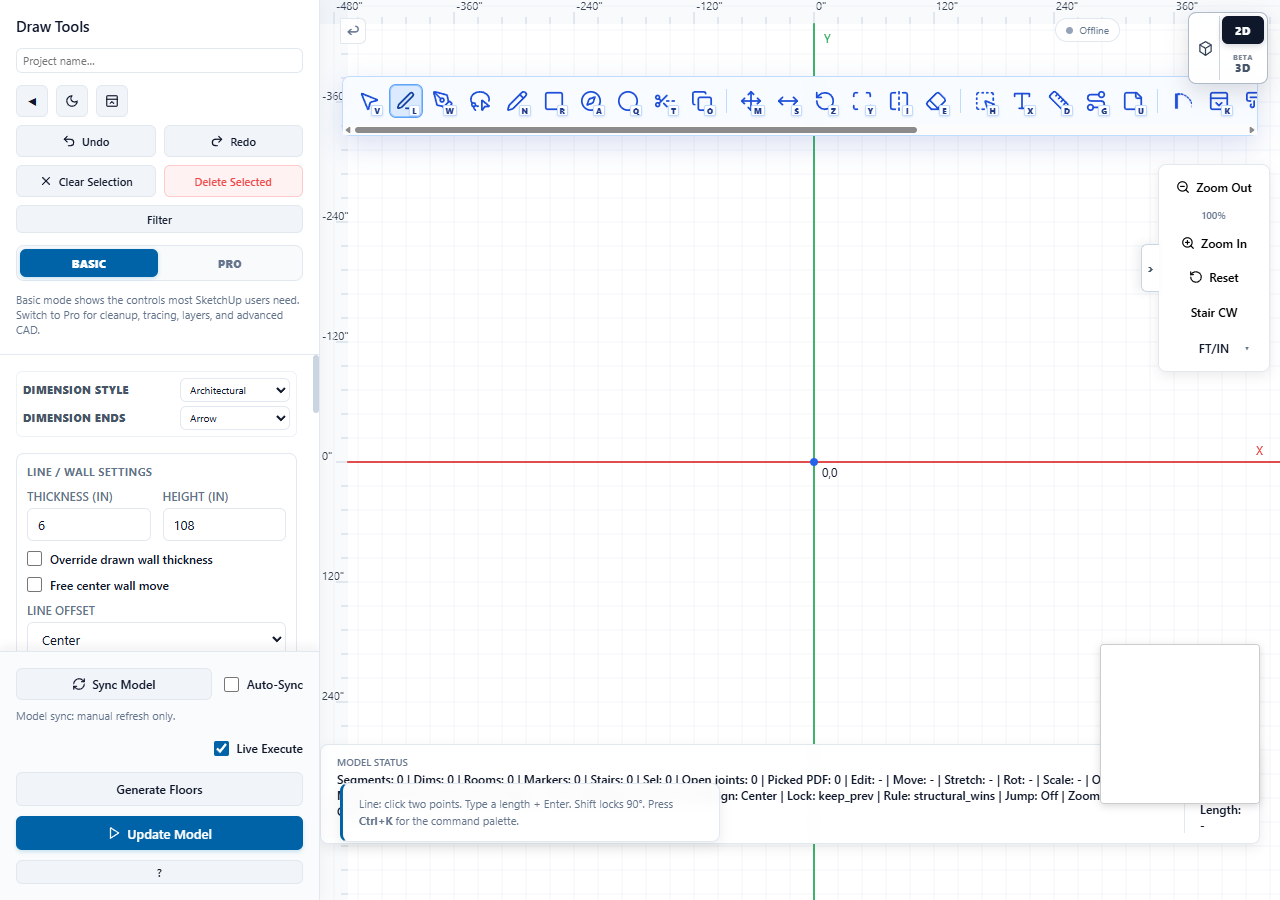

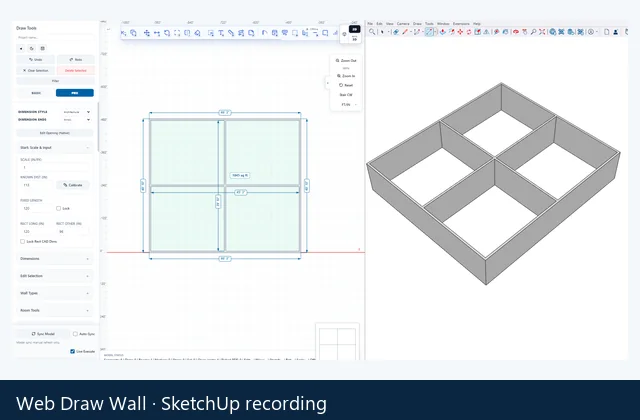

LizArk Web Draw Wall interface showing the left tool panel, CAD toolbar, and 2D canvas

Web Draw Wall canvas: left panel, top CAD toolbar, and a full 2D grid for tracing or drawing from scratch.

Web Draw Wall

Feature inventory

A CAD-class canvas inside SketchUp: 22+ drawing tools, 5 toolbar groups, 12 sidebar panels, 38 command-palette actions, and live export.

Drawing tools (22+)

  • Select/Edit - Select, Move, Stretch, Erase, Dimension
  • Trace/PDF - Line, Wall, Pencil, PDF Pick, Rectangle, Arc
  • Markers - Door, Window, Vent, Opening, Column, Beam, Footing, Stair, Road
  • Advanced - Spline/Bezier, Circle, Hatch, Text, Leader, Note

CAD toolbar (5 groups)

  • Drawing - Select, Line, Wall, PDF Pick, Pencil, Rect, Arc, Circle
  • Transform - Move, Stretch, Rotate, Scale, Mirror, Erase
  • Annotation - Hatch, Text, Dimension, Leader, Note
  • Markers - Door, Window, Vent, Opening, Column, Beam, Footing, Stair, Road
  • Advanced - Fillet, Chamfer, Spline, Boolean Merge/Subtract/Intersect, Asset Library

Sidebar (12 sections)

  • Scale & Input, Dimensions, Edit Selection, Wall Types
  • Wall Finish & Materials, Profile Editor for composite walls
  • Layer Manager, Display & Snaps, Openings
  • Import & Trace, Save & Export, Room Tools, Settings

Canvas & snaps

  • Zoom 0.02x-8x, pan, reset view, window select, multi-select
  • 7 snap types + model snap, polar tracking, Shift ortho lock
  • Endpoint drag, typed length, Tab W/H, constraint mode

3D preview & markers

  • Three.js renderer with 6 camera presets
  • Door / Window / Vent / Opening markers with presets
  • Chejja (Flat, Sloped, L-Type, Box), Boolean ops, Room detection

Export, sync & UI

  • JSON (bidirectional), DXF, PDF, PNG, JPG, SVG
  • WebSocket collaboration + live-execute mode
  • Light/Dark/System theme, toast notifications, minimap, hint box
Web Draw 3D Preview

Preview is where drawing becomes a decision

Switch from the plan to a live model before Update Model. Inspect wall height, opening hosts, columns, and beams, then orbit freely or choose a precise camera view.

  1. 01 Draw

    Keep the plan fast and precise in 2D.

  2. 02 Inspect

    Read the design from six views or free orbit.

  3. 03 Update

    Commit verified intent to the SketchUp model.

The preview is intentionally lightweight. Roads, stairs, footings, floors, and other canvas objects continue through the full Update Model pipeline.

Explore the 3D preview workflow
Real LizArk workflow converting a prepared floor plan into an editable SketchUp model
A real LizArk plan-to-model workflow. Web Draw now adds an interactive inspection step before the full model update.

Feature Catalog

Everything you need to build faster

Explore Lizark modeling tools and US construction workflows. Lizark includes four construction systems introduced in v1.0.24, with connected wall, floor, roof, opening and finish controls.

US skeleton and finish gallery US framing settings guide AI / MCP setup guide Release progress

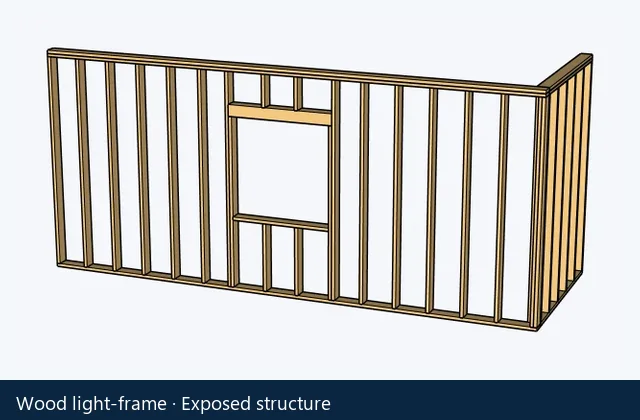

Lizark wood, steel, CLT and masonry wall examples with a window opening
v1.0.27 · US framing

Four US Wall Systems

Choose wood, CFS, CLT or CMU in Settings. Solid walls stay the default.

  • Material-specific cores and members
  • Stud spacing, plates and rough openings
  • Configurable wall layers
All tools and controls
Explore the workflow

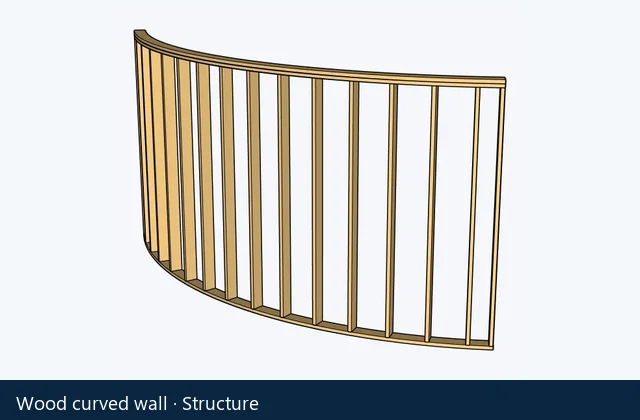

Lizark curved wood and CFS walls with exposed framing and finish layers
v1.0.27 · US framing

US Drawing, Openings & Finishes

Draw, trace and curve US walls, then edit openings and finish layers.

  • Member sizes and individual stud edits
  • Layer shapes, textures and cladding
  • Finished frames and repeated openings
All tools and controls
  • Draw, Trace & Curve: Native Draw Wall, Trace Wall, Web Draw Wall and curved assemblies use the saved US model profile.
  • Granular Wall Controls: Height, alignment, member sizes, spacing, plates, individual stud edits and compatible connected-wall updates.
  • Layers & Textures: Layer thickness, custom shapes, colors, texture scale, rotation and offsets, plus cladding courses and reveals.
  • Finished Openings: Rough framing, shaped cuts, frame and casing controls, repeated placement and curved-wall finished components.
Explore the workflow

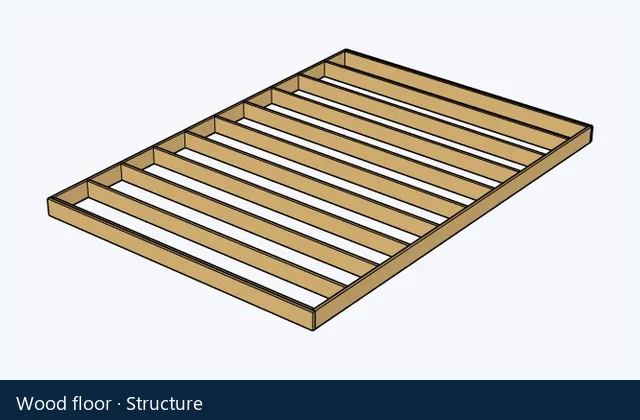

Lizark floor joists and wood, steel, CLT and concrete roof examples
v1.0.27 · US framing

US Floors, Roofs & Porches

Build floors and roofs with the material system saved in your model.

  • Joists, steel channels, panels and slabs
  • Roof covering, fascia and soffits
  • Wall fitting and linked porch supports
All tools and controls
  • Floors & Decking: Wood joists and subfloors, CFS channels and corrugated decking, CLT panels and concrete slabs.

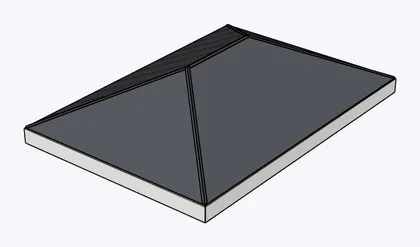

  • Roof Systems: Gable, shed, hip and authored roofs with covering, fascia, soffits and genuine profile bends and cut edges.
  • Fitting & Supports: Compatible wall-to-roof fitting, polygon footprints, beams, posts and linked porch assemblies.
  • Recipe-Aware Quantities: Recipe-aware quantity reports; estimating exports and cost databases remain future work.
Explore the workflow

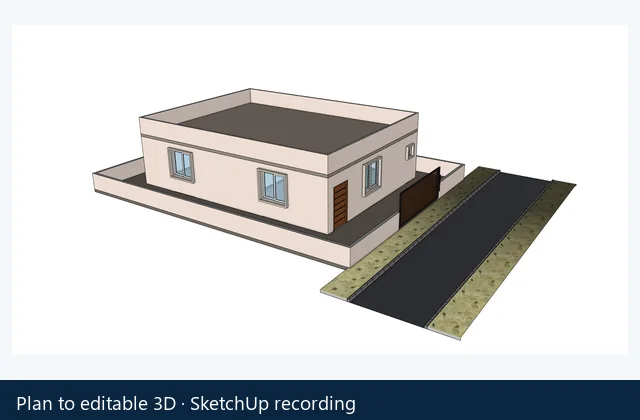

SketchUp recording of Lizark converting a 2D floor plan to 3D
Plan to Model

1-Click 2D Plan to 3D Generation

Turn prepared floor plans into editable SketchUp building models.

  • Detect walls and openings
  • Generate or update selected areas

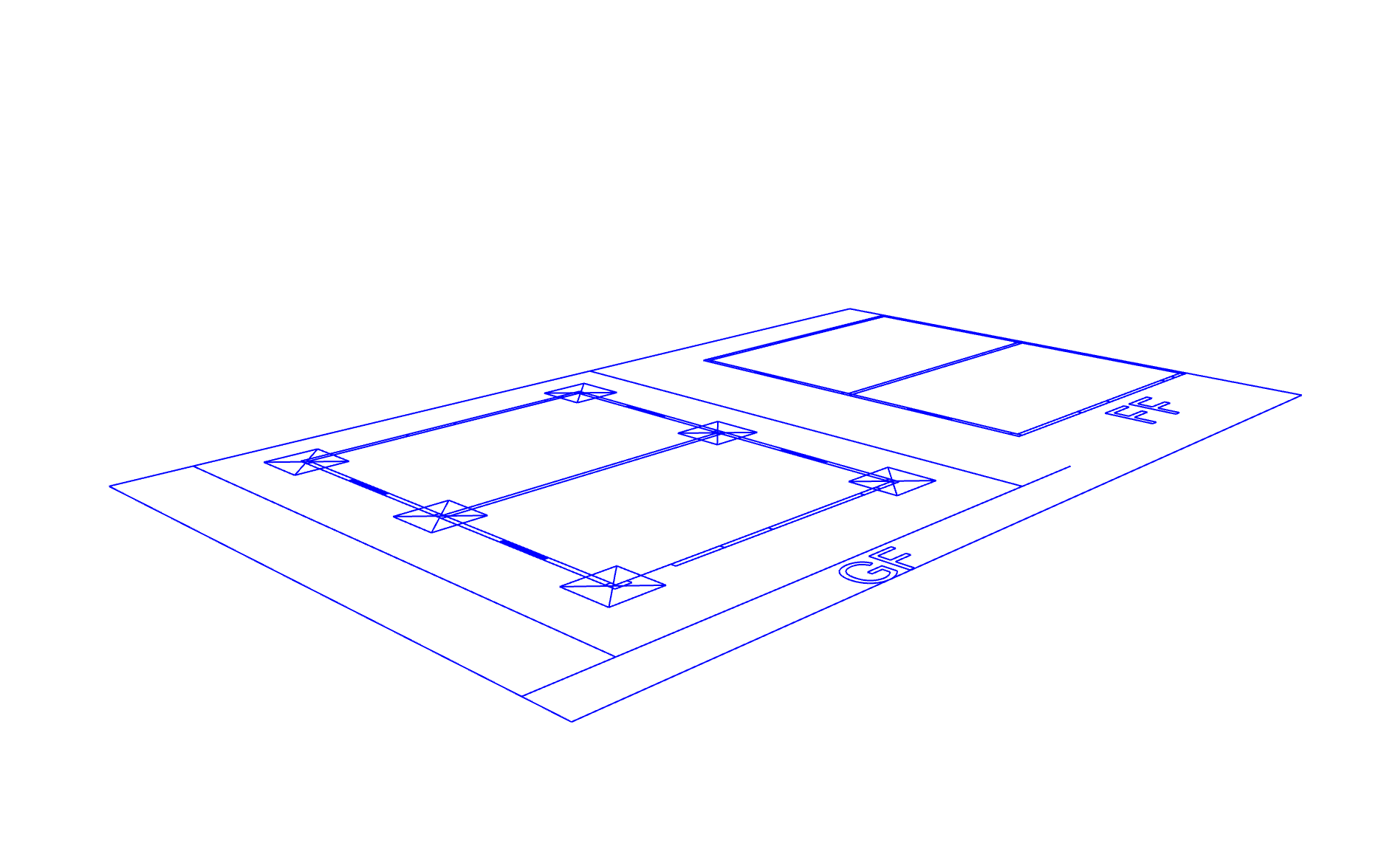

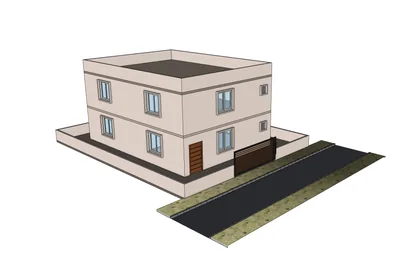

  • Stack floor plans with To Elevation
All tools and controls
Explore the workflow
Lizark Web Draw Wall recording showing plan drawing and its SketchUp model
Manual Modeling

Drawing Tools Inside SketchUp

Draw walls, rooms and roofs with exact dimensions and live snapping.

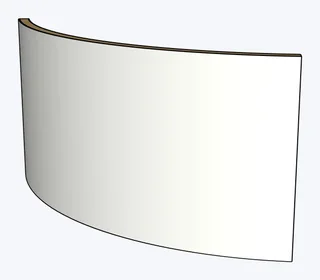

  • Straight, compound and curved walls
  • Measurements input and corner handling
  • Web Draw Wall canvas workflow
All tools and controls
Explore the workflow

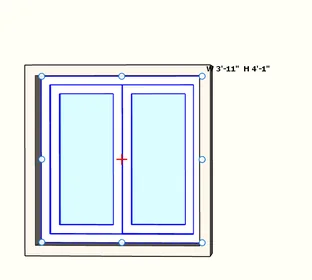

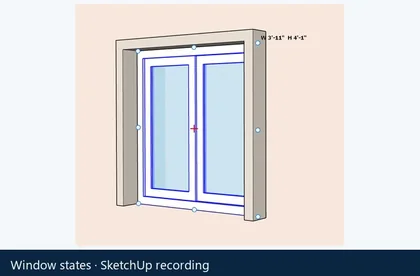

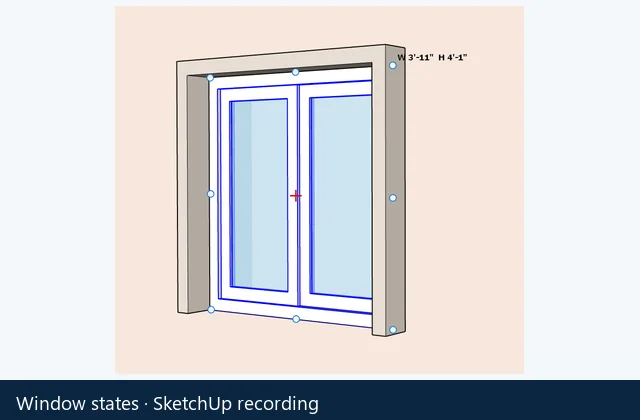

SketchUp recording of Lizark window opening states and frame geometry
Openings

Doors, Windows, Ventilators & Panels

Place wall-aware openings with editable frames, glazing and panels.

  • Doors, gates and windows
  • Corner windows and ventilators
  • Custom panel layouts
All tools and controls
Explore the workflow

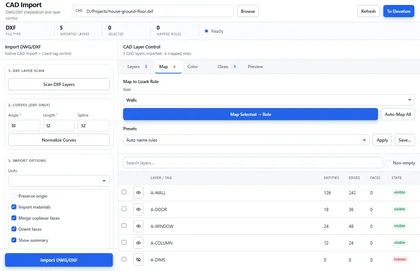

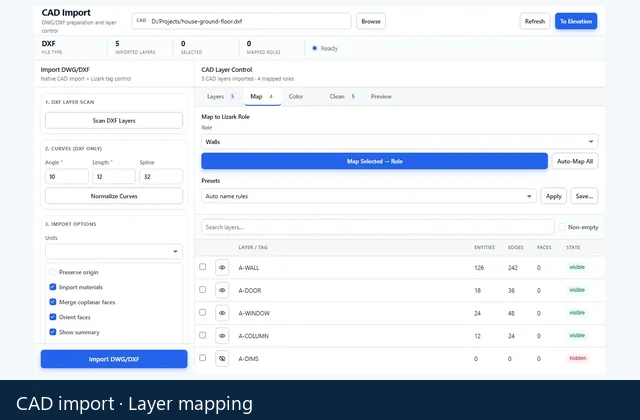

Lizark CAD import interface with layer mapping and scale controls
Trace & Import

PDF, DWG/DXF and 2D Tracing

Import a plan, check its scale and trace the geometry you need.

  • Vector PDF and DWG/DXF import
  • Raster images and layer controls
  • Wall and opening trace markers
All tools and controls

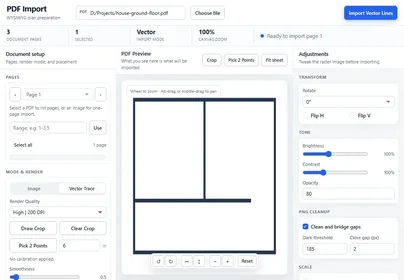

  • Import PDF: Import PDF floor plans with vector-aware support, scaling and preview workflow. Lizark PDF import controls PDF import controls →
  • Import JPG/PNG: Bring raster plan images into the import workflow for tracing, cleanup and scaling.
  • Import DWG/DXF: Import CAD plans with native options and layer controls. Lizark CAD import layer controls CAD import layer controls →
  • Trace Wall 2D: Trace wall pairs from imported plan references.
  • Trace Compound Wall: Trace multi-leaf compound wall pairs for cavity and boundary walls.
  • 2 Click 3D: Convert traced wall and opening markers into the 3D generation workflow.
Explore the workflow

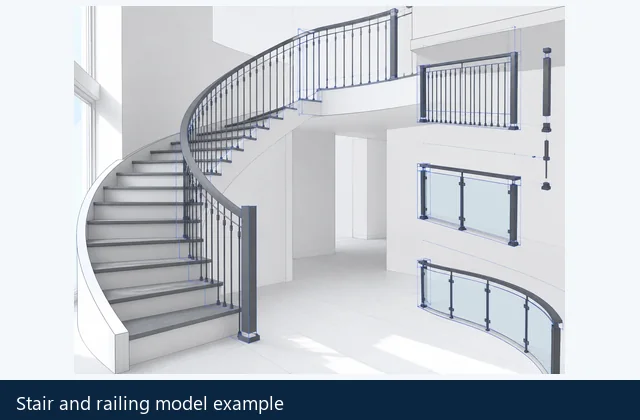

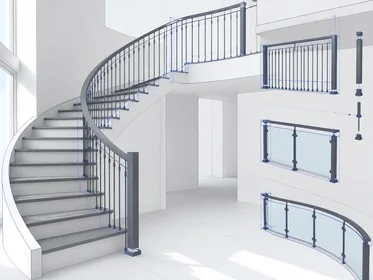

SketchUp staircase and railing model example
Stairs & Rails

Stairs, Railings & Structural Tools

Add stairs and railings, then place beams, columns and foundations.

  • Straight, dog-leg and spiral stairs
  • Path-based parametric railings
  • Structural placement and ramps
All tools and controls
  • Auto Stairs: Generate stairs with direction controls for stair layout selection.
  • Draw Stair: Draw straight and dog-leg stairs with interactive preview behavior. Lizark Staircase and railing model example Staircase and railing model example →
  • Auto Stair Direction: Choose clockwise or anti-clockwise spiral direction before stair generation.
  • Railing Builder: Create parametric railings along selected or drawn paths. Lizark Stair and railing model example Stair and railing model example →
  • LizArk Rail: Use the embedded rail path workflow for dedicated railing generation.

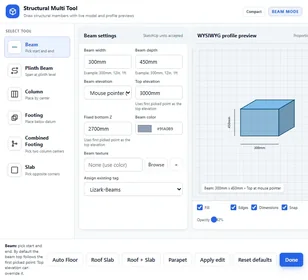

  • Structural Multi Tool: Draw beams, plinth beams, columns, pad or strip footings, combined footings, and slabs from one live panel. Lizark Structural Multi Tool controls Structural Multi Tool controls →
  • Bevel & Chamfer: Round or chamfer selected hard edges with controlled segments from the Suite toolbar.
  • Ramp: Place sloped walkway, ADA, and vehicle ramps with standard slope presets and live preview.
Explore the workflow

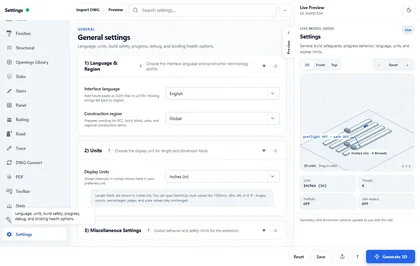

Lizark Settings interface with model configuration controls
Control

Settings, Tags and Preflight

Set modeling defaults and check your plan before generating geometry.

  • Wall, opening and finish preferences
  • Tag management and preflight checks
  • Toolbar and model statistics
All tools and controls

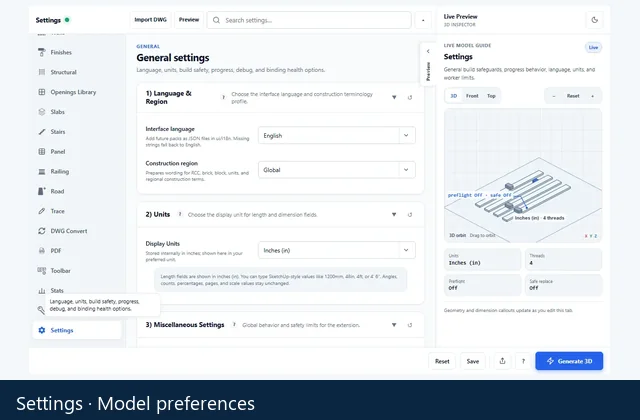

  • Settings: Open generation options, toolbar visibility and plugin configuration controls. Lizark General Settings controls General Settings controls →
  • AI / MCP Integration — v1.0.27: Connect a compatible AI app through Lizark's local MCP bridge. Enable or disable access, choose inspection-only mode, test the bridge, and copy connection settings. Node.js and the Lizark MCP companion are installed separately.

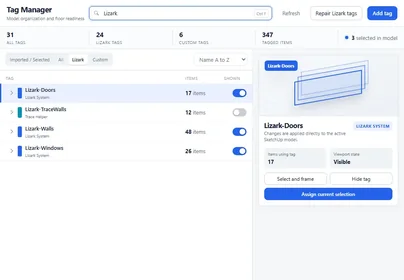

  • Tag Manager: Create or repair required LizArk tags used by tracing and generation. Lizark Tag Manager controls Tag Manager controls →
  • Preflight Check: Find common setup issues and apply safe fixes before output.
  • Opening Preview Dimensions: Review opening width, height and sill levels before committing to the model.
  • Toolbar Palette: Use a floating palette with main tools and trace/utilities rows. Lizark Lizark toolbar palette Lizark toolbar palette →
  • Stats Panel: Review model counts for walls, openings, stairs, roads, rails and materials.
Explore the workflow

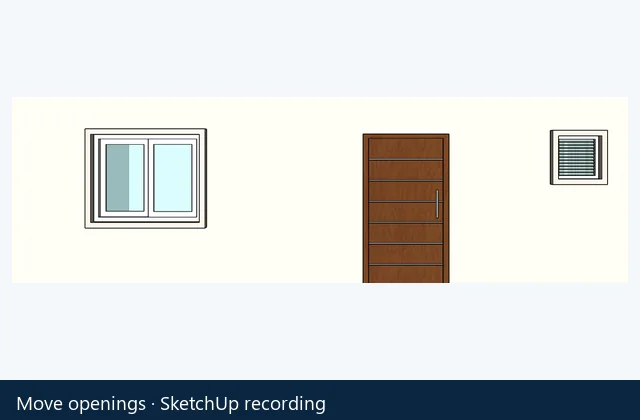

SketchUp recording of moving Lizark door, window and ventilator components
Opening Edits

Edit, Move, Resize & Custom Openings

Adjust openings while keeping frames, sunshades and host walls coordinated.

  • Move openings and heal old cuts

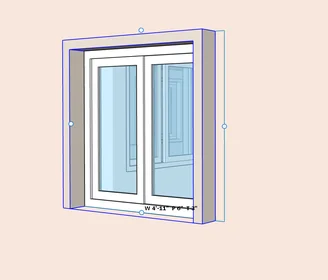

  • Resize frames and sunshades
  • Edit custom openings and ventilators
All tools and controls
Explore the workflow

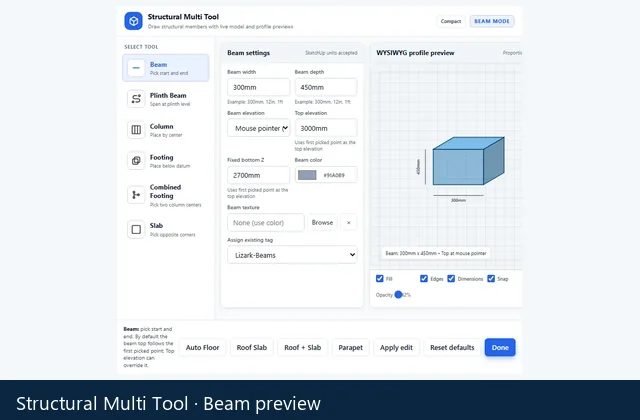

Lizark structural placement interface with a beam preview
Generation Engines

Structural, Finish & Material Engines

Generate structure and apply coordinated floors, finishes and materials.

  • Beams, columns and footings
  • Skirting, floor and roof generators
  • Material Manager and Finish Brush
All tools and controls
  • Beam Generator: Create structural beams along supports, wall pairs, or selected edges.
  • Column Generator: Drop vertical columns at wall intersections, corners, and grid points.
  • Footing Generator: Generate foundation footings under columns and load-bearing walls.
  • Skirting Generator: Add finish skirting along wall bases with material and height controls.
  • Floor & Roof Engine: Build floor slabs and roof surfaces from closed wall boundaries.
  • Material Manager: Apply and sync wall, opening, and structural materials from project presets.
  • Finish Brush: Apply or remove managed interior and exterior plaster or paint while preserving openings and source geometry.
Explore the workflow
Lizark Exploded View assembly example with separated model parts
Presentation

Lizark Exploded View

Present assembly sequences with part motion, camera paths and exports.

  • Selected-part animation
  • Camera paths and callouts
  • Video and illustrated-manual exports
All tools and controls
  • Part Motion: Animate selected groups and component instances with radial, axis, floor, fall, angle, slide, and fan effects.
  • Camera Paths: Add orbit, dolly, pan, tilt, truck, pedestal, crane, zoom, roll, or fly-through movement.
  • Preview & Export: Preview, scrub, commit or reset the animation, then export MP4, WebM, animated WebP, or PNG sequences.
Explore the workflow
Lizark road network and site model example
Site modeling

Roads & Site Modeling

Build road corridors and site networks with Lizark Roads Pro.

  • Curved paths and road corridors
  • Junctions, crossings and signs
  • Site and terrain context
All tools and controls
  • Road Corridors: Create straight and curved roads along site paths.
  • Junctions & Crossings: Configure road connections, crossings and signage.
  • Site Context: Coordinate road layouts with terrain and surrounding site geometry.
Explore the workflow
Lizark Settings interface used to configure interface preferences
Localization

Multilingual UI

Use Lizark in 32 languages, with English fallback and RTL layouts.

  • Switch language in Settings
  • Localized tool and construction terms
  • Arabic, Persian and Urdu RTL support
All tools and controls
  • 32 Languages: Full support for the construction markets served by LizArk, from India to GCC, Southeast Asia, Africa and Latin America.
  • English Fallback: Missing strings automatically fall back to English so the plugin stays usable while translations are updated.
  • RTL Layouts: Arabic, Persian and Urdu packs use right-to-left layout in all dialogs.
  • Settings Language Selector: Switch language from the Settings tab; the change applies immediately across all plugin dialogs.
Explore the workflow
Beyond raw geometry

A BIM-like layer of intent inside SketchUp

LizArk keeps useful object data attached to structure and finishes. This supports repeatable edits and clearer handoffs without claiming to replace a full BIM platform.

Structural Multi Tool

Six structural modes, one placement language

Place beams, plinth beams, columns, pad or strip footings, combined footings, and slabs with exact dimensions, workplane inference, live previews, materials, and existing SketchUp tags.

Each result keeps its LizArk type, role, dimensions, source, material, and tag data, so it remains recognizable after placement.

Learn Structural Multi Tool

Finish Brush

Plaster and paint that remember what they are

Plaster becomes a measured shell with interior or exterior intent, real thickness, material data, and preserved opening cutouts. Paint stays separate and can be removed without flattening the finish workflow.

The finish stack records type, side, material, opacity, visibility, and the relationship to source building objects for later updates.

Learn Finish Brush
LizArk creating a multi-story SketchUp elevation from organized 2D floor plans

Feature Spotlight

1-Click Elevation From 2D Floor Plans

Use To Elevation to turn organized 2D floor plans into a stacked, elevation-ready 3D building in one command. LizArk detects each level and positions it at the correct elevation height.

  • Precise Level Offsets: Specify custom slab-to-slab height constraints for Ground Floor, First Floor, and upper levels.
  • Automatic Anchoring: Utilizes centroid alignment to perfectly stack XY floor geometries across multi-plan layouts.
  • Void & Slab Detection: Automatically infers setbacks, balconies, stair openings, and separate floor slabs to prevent overlap.

Opening Suite

Parametric Window & Opening Automation

A complete, self-healing toolset to draw, adjust, and configure openings without manual push-pull operations.

LizArk non-destructive SketchUp tools for moving doors, windows, and ventilators

Non-Destructive Move Tool

Relocate doors, windows, gates, or ventilators seamlessly. The layout engine patches previous openings automatically and re-cuts walls in real-time.

  • Universal Openings: Move main gates, internal doors, or ventilators easily.
  • Non-Destructive Healing: Previous wall voids fill automatically with no solid artifacts.
  • Real-Time Re-Cutting: Generates new, watertight wall cuts instantly upon component placement.
LizArk - Smart Scale Openings

Smart Scale Openings

Scale windows and ventilators directly. Internal frame profiles and trim boundaries adjust proportionally.

  • No Stretch Distortion: Retains correct sash and frame thicknesses.
  • Linked Scaling: Weather protection slabs scale in width automatically.
  • Dynamic Mullions: Glazing divisions recalculate based on sizing.
LizArk - Configurable Sunshades

Configurable Sunshades

Swap window projection designs instantly from a library of real-world construction presets.

  • Preset Swapping: Toggle between sloped sills, box projections, and drops.
  • Accurate Details: Presets built to replicate masonry concrete details.
  • Parameter Settings: Easy settings for depth, drop, and side offsets.
LizArk - Interactive Window States

Interactive Window States

Toggle opening angles dynamically for rendering-ready models and realistic views.

  • Swing & Slide Angles: Toggle shutters open, half-open, or closed.
  • Render Optimization: Easily configure panels for interior/exterior views.
  • Context Controls: Adjust states on select without geometry rebuilding.

Localization

32 Languages, One Plugin

Switch the LizArk interface and construction terminology to the language your team works in. Missing translations fall back to English.

አማርኛ

Amharic

Africa

العربية

Arabic

Middle East / North Africa

বাংলা

Bengali

South Asia

English

English

Global

Español

Spanish

Latin America / Spain

فارسی

Persian

Middle East / Central Asia

Filipino

Filipino

Southeast Asia

Français

French

Europe / Africa

ગુજરાતી

Gujarati

South Asia

Hausa

Hausa

Africa

हिन्दी

Hindi

South Asia

Bahasa Indonesia

Indonesian

Southeast Asia

日本語

Japanese

East Asia

ខ្មែរ

Khmer

Southeast Asia

ಕನ್ನಡ

Kannada

South Asia

한국어

Korean

East Asia

മലയാളം

Malayalam

South Asia

मराठी

Marathi

South Asia

Bahasa Melayu

Malay

Southeast Asia

မြန်မာ

Burmese

Southeast Asia

नेपाली

Nepali

South Asia

Português

Portuguese

Europe / Brazil

Русский

Russian

Eastern Europe / Central Asia

සිංහල

Sinhala

South Asia

Kiswahili

Swahili

Africa

தமிழ்

Tamil

South Asia

తెలుగు

Telugu

South Asia

ไทย

Thai

Southeast Asia

Türkçe

Turkish

Europe / Middle East

اردو

Urdu

South Asia / Middle East

Tiếng Việt

Vietnamese

Southeast Asia

简体中文

Chinese Simplified

East Asia

FAQ

Common Questions

Can I connect an AI app to Lizark through MCP?

Version 1.0.27 adds an AI / MCP tab in Settings for compatible MCP clients. It provides persistent bridge enablement, inspection-only access, companion selection, a local bridge test, and connection configuration copying. Node.js and the Lizark MCP companion must be installed separately. Keep SketchUp open and call lizark_status from your AI app to check the connection. Model-changing calls require permission, confirmation, and a current model identity. AI / MCP settings are included in the current v1.0.27 download.

What is LizArk?

LizArk is a SketchUp extension for automatic floor plan detection and 1-click conversion of prepared 2D architectural plans into editable 3D building and site models.

What does 99% accurate plan conversion mean?

The 99% accuracy claim refers to the product target for clean, properly scaled and readable architectural plan inputs. Results can vary with scan quality, layer quality, drawing standards and whether the source is vector PDF, CAD, JPG or PNG.

Which file types does LizArk support?

LizArk includes workflows for vector-aware PDF plan import, JPG/PNG/PDF image import workflows for tracing and cleanup, and DWG/DXF CAD import with layer control.

Can LizArk create doors and windows?

Yes. It includes wall-aware tools for doors, gates, windows, corner windows, ventilators, custom panels and editable openings.

Can LizArk create an elevation from 2D floor plans in one click?

Yes. To Elevation detects organized floor plans and stacks repeated or selected levels into an elevation-ready multi-story SketchUp model in one command.

Does LizArk include road and site tools?

Yes. LizArk Roads Pro supports road corridors, curved roads, path import, crossings, signs, junctions, roundabouts and node editing.

Does LizArk support multiple languages?

Yes. LizArk ships with 32 language packs including English, Hindi, Tamil, Telugu, Kannada, Malayalam, Marathi, Gujarati, Bengali, Urdu, Arabic, French, Spanish, Portuguese, Indonesian, Malay, Thai, Vietnamese, Filipino, Swahili and more. Pick your language in Settings; missing strings fall back to English.

Is LizArk a BIM tool?

LizArk adds BIM-like, object-aware workflows to SketchUp. Structural members and finish layers retain type, dimensions, materials, tags, and source relationships, but LizArk is not a full BIM authoring or coordination platform.

What can the Web Draw 3D preview show?

The current preview shows walls, hosted openings, columns, and beams with six camera presets, edges, dimensions, fog, and in-context editing. Other Web Draw objects are created through Update Model.

What is Lizark Exploded View?

Lizark Exploded View is a coming-soon standalone extension currently visible as a product preview. It animates selected groups and components, adds camera paths, storyboards and callouts, writes SketchUp scenes, and exports videos, social formats, illustrated manuals and BOMs. Checkout is temporarily disabled.

Special Launch Offer

Get 10% Off at Launch

Reserve your launch coupon code today and be notified when LizArk goes live.

v1.0.27 · US framing

US walls, floors and roofs in four systems

Explore wood framing, CFS steel channels, CLT panels and CMU wall assemblies with concrete surfaces. US framing activates through Settings; solid wall drawing remains the default.

See skeleton and finish examplesRead the US framing guide
Lizark wood wall studs and plates with framed window opening in SketchUp

We use cookies only for essential site functionality. We do not use tracking or analytics cookies unless you enable them.
